RAG From Scratch: Build a Document-Aware AI Assistant

Every RAG tutorial that starts with pip install langchain and ends five lines later teaches you how to call a framework, not how retrieval-augmented generation actually works. When that five-line version returns a wrong or ungrounded answer in production, and it will, you're debugging a black box instead of a pipeline you understand. This builds the whole thing by hand instead: chunking, embeddings, a vector store implemented with nothing but NumPy, retrieval, and grounded generation, so every failure mode has a specific line of code you can point to.

By the end, you'll have a working assistant that answers questions against your own documents with citations back to the exact source, and you'll understand precisely why each stage exists.

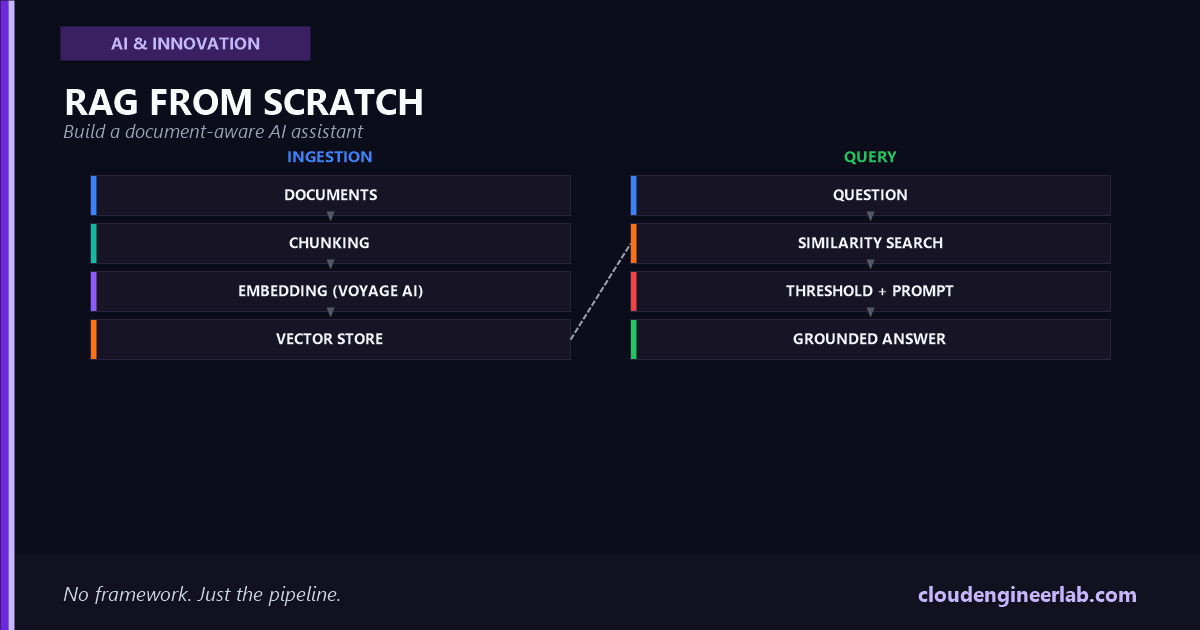

The Two Pipelines We're Building

These are genuinely separate pipelines with separate failure modes. Ingestion runs once per document and can afford to be slow and thorough. Query runs on every question and has to be fast, which is exactly why the vector store exists, to make the query pipeline's search step fast without re-embedding every document on every question.

Step 1: Chunking

A whole document rarely fits, or belongs, in a single retrieval unit. Chunking splits it into pieces small enough to retrieve precisely and large enough to still make sense on their own:

def chunk_text(text: str, chunk_size: int = 500, overlap: int = 50) -> list[str]:
    """Split text into overlapping word-based chunks."""
    words = text.split()
    chunks = []
    start = 0
    while start < len(words):
        end = start + chunk_size
        chunks.append(" ".join(words[start:end]))
        start += chunk_size - overlap
    return chunks

Step 2: Embedding

Anthropic doesn't ship its own embedding model, and for RAG specifically, that's an intentional separation, embedding and generation are different problems with different optimal tools. Anthropic's recommended pairing is Voyage AI, and voyage-3-large is currently their strongest general-purpose option, though it's worth checking Voyage's current model list before building on this, embedding models get replaced faster than this paragraph will stay accurate.

import voyageai

vo = voyageai.Client()  # reads VOYAGE_API_KEY from the environment

def embed_documents(chunks: list[str]) -> list[list[float]]:
    """Embed a batch of chunks for storage."""
    result = vo.embed(chunks, model="voyage-3-large", input_type="document")
    return result.embeddings

def embed_query(query: str) -> list[float]:
    """Embed a single query for retrieval."""
    result = vo.embed([query], model="voyage-3-large", input_type="query")
    return result.embeddings[0]

Step 3: The Vector Store, Built From Scratch

This is the part every framework hides, and it's worth seeing once with nothing hidden. A vector store's actual job, at small to medium scale, is nothing more exotic than holding a list of vectors and finding which ones are closest to a query vector:

import numpy as np

class SimpleVectorStore:
    def __init__(self):
        self.chunks: list[str] = []
        self.sources: list[str] = []
        self.vectors: np.ndarray | None = None

    def add(self, chunks: list[str], vectors: list[list[float]], source: str):
        self.chunks.extend(chunks)
        self.sources.extend([source] * len(chunks))
        new_vectors = np.array(vectors)
        self.vectors = new_vectors if self.vectors is None else np.vstack([self.vectors, new_vectors])

    def search(self, query_vector: list[float], top_k: int = 4) -> list[dict]:
        query = np.array(query_vector)
        # Cosine similarity against every stored vector, done directly.
        similarities = self.vectors @ query / (
            np.linalg.norm(self.vectors, axis=1) * np.linalg.norm(query)
        )
        top_indices = np.argsort(similarities)[::-1][:top_k]
        return [
            {"chunk": self.chunks[i], "source": self.sources[i], "score": float(similarities[i])}
            for i in top_indices
        ]

self.vectors @ query is a matrix-vector product, every stored vector's dot product with the query vector, computed in one call. Dividing by the norms turns that dot product into cosine similarity, a value from -1 to 1 measuring how closely two vectors point in the same direction, which is the entire mathematical basis "semantic search" rests on. There's no magic past this. A production vector database like pgvector, Pinecone, or Chroma does the same computation, just indexed for approximate search across millions of vectors instead of a linear scan across a few thousand.

Step 4: Retrieval, With an Honest Threshold

Top-k search always returns something, even when nothing in the store is actually relevant to the question. That's the gap where hallucination creeps in if it isn't closed explicitly:

def retrieve(store: SimpleVectorStore, query: str, top_k: int = 4, min_score: float = 0.3) -> list[dict]:
    query_vector = embed_query(query)
    results = store.search(query_vector, top_k=top_k)
    return [r for r in results if r["score"] >= min_score]

The right value for min_score isn't universal, it depends on the embedding model and the domain, and it's worth tuning against a small labeled set of real questions rather than guessing, the same discipline covered generally in LLM Evaluation.

Step 5: Prompt Assembly and Grounded Generation

The retrieved chunks get assembled into a prompt that does two specific jobs: gives the model the actual source material, and constrains it to answer only from that material.

import anthropic

client = anthropic.Anthropic()

def build_prompt(query: str, retrieved: list[dict]) -> str:
    if not retrieved:
        context = "No relevant documents were found for this question."
    else:
        context = "\n\n".join(
            f"[Source: {r['source']}]\n{r['chunk']}" for r in retrieved
        )
    return (
        f"Answer the question using only the context below. "
        f"If the context doesn't contain enough information to answer, say so explicitly "
        f"rather than guessing. Cite the source for any claim you make.\n\n"
        f"Context:\n{context}\n\n"
        f"Question: {query}"
    )

def generate_answer(query: str, retrieved: list[dict]) -> str:
    prompt = build_prompt(query, retrieved)
    response = client.messages.create(
        model="claude-sonnet-5",
        max_tokens=1024,
        messages=[{"role": "user", "content": prompt}],
    )
    return response.content[0].text

The instruction to cite sources and admit uncertainty isn't decoration. It's what turns "here's some context, do your best" into a prompt that gives the model explicit permission to say it doesn't know, which matters because a model without that permission will often produce a confident-sounding guess instead.

Putting It Together: One Full Query

def ask(store: SimpleVectorStore, query: str) -> dict:
    retrieved = retrieve(store, query)
    answer = generate_answer(query, retrieved)
    return {
        "answer": answer,
        "sources": list({r["source"] for r in retrieved}),
        "chunks_used": len(retrieved),
    }

Tracing a real question through every stage, against a store built from three internal runbooks:

That dropped fourth chunk is the threshold doing its job silently. Without it, the model would have received an irrelevant HR excerpt alongside the real answer and had to reason its way around it instead of never seeing it.

Where Retrieval Actually Fails

The other common failure sits at the chunk boundary itself: a fact split across two chunks by the chunking step, with neither half individually similar enough to the query to clear the threshold. Overlap reduces this. It doesn't eliminate it, which is part of why retrieval quality deserves the same measurement discipline as any other part of the system, not an assumption that it's working because the demo looked good.

The Attack Surface Nobody Mentions in the Framework Docs

The mitigation is the same principle covered there, applied at ingestion: treat retrieved content as data to be reasoned about, not instructions to follow, explicitly in the prompt template, and restrict write access to whatever's actually being indexed to people you'd trust to send the model a direct message.

Evaluating Whether This Actually Works

A RAG system that "seems to work" on a handful of manual questions and a RAG system that's actually reliable are different claims, and only one of them is testable. Build a small set of real questions with known correct source documents, and measure two things separately: whether retrieval actually surfaced the right chunk (recall at k), and whether the generated answer was actually grounded in what was retrieved rather than drifting into the model's own training knowledge. These are genuinely different failure modes, a wrong answer from perfect retrieval is a generation problem, a wrong answer from a failed retrieval is a search problem, and conflating them makes both harder to fix. The full discipline for building this evaluation set is covered in LLM Evaluation.

Keeping the Index Current

Nothing about the pipeline above updates itself when a source document changes. A runbook edited on Tuesday is still answered from Monday's chunks until someone re-runs ingestion for that specific document, which is a real operational surface, not a one-time setup step. The practical pattern: track a hash or last-modified timestamp per source document, and re-chunk and re-embed only the documents that actually changed, rather than re-embedding an entire corpus on every update, which gets expensive and slow fast as the document set grows.

The Bottom Line

Nothing in this pipeline is conceptually hard, chunk text, embed it, measure similarity, filter what's actually relevant, and tell the model explicitly to answer only from what made the cut. What makes RAG unreliable in practice is almost never the concept, it's an untested chunk size, a missing similarity threshold, a document store nobody treats as untrusted input, or an evaluation set that never existed in the first place. Every one of those is a specific, fixable line of code once you can see the pipeline instead of a framework's default configuration.

This pipeline used cloud embeddings and a cloud model on purpose, to keep the mechanics visible. For the same pipeline rebuilt so every step, embedding included, runs locally and nothing leaves the machine, see Build a Private AI Assistant With Local Models + RAG.
