Hardware Security: TPM, Secure Boot, BitLocker and Windows Hello Explained

TPM, Secure Boot, BitLocker, and Windows Hello get talked about as four separate checkboxes in four separate settings menus. They aren't separate. They're one continuous chain, each link depending entirely on the link before it having held. Understanding them as a chain, rather than four unrelated features, is what turns "my laptop has a TPM" from a fact you know into an architecture you actually understand.

UEFI
 ↓
Secure Boot
 ↓
TPM
 ↓
Windows
 ↓
Credential Protection
 ↓
BitLocker
 ↓
Identity

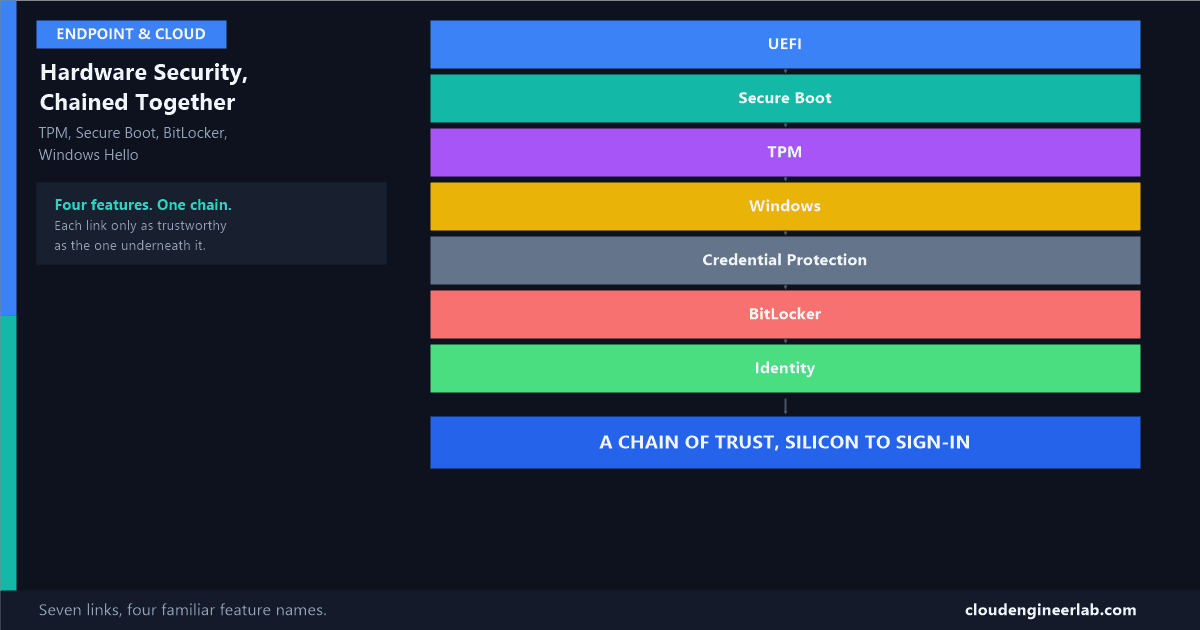

The Chain, End to End

Stage 1: UEFI, the First Code That Ever Runs

UEFI (Unified Extensible Firmware Interface) is the modern replacement for the old BIOS, the very first software that executes the instant power reaches the motherboard, before Windows, before any antivirus, before anything you'd normally think of as "the computer starting." Its job is simple to state and critical in practice: find the operating system and hand control to it.

This matters because if something malicious can run at this stage, before Windows and before any security software has even loaded, it has a level of control nothing running inside Windows can see or stop. This is the actual foundation everything else in this post depends on.

Stage 2: Secure Boot, Refusing to Run What Isn't Signed

Secure Boot is a UEFI feature that checks the digital signature of every component in the boot chain, the bootloader, the OS kernel, before allowing it to execute. If a component isn't signed by a trusted certificate, it doesn't run, full stop.

Stage 3: TPM, a Chip That Remembers What Booted

The Trusted Platform Module is where this chain becomes cryptographic rather than just a signature check. As the boot process proceeds, the TPM takes measurements of each stage, recording them into a set of registers, and can later prove, or refuse to release a secret, based on whether the current boot state matches an earlier trusted state.

I've covered the actual sealing mechanism in detail elsewhere: the short version is that the TPM seals cryptographic keys against these measurements, and only releases them automatically if the current boot state matches. Secure Boot and the TPM work as two complementary mechanisms here, not one duplicating the other: Secure Boot stops untrusted code from executing in the first place, while the TPM's sealing stops encrypted data and protected credentials from being released if the boot state ever looks different than expected, even in the more unusual case where Secure Boot was disabled or bypassed entirely.

Stage 4: Windows, Loading Only After Everything Above It Held

By the time Windows itself starts, two things are already true: every boot component was properly signed (Secure Boot), and the TPM has a fresh, accurate measurement of exactly what loaded (Stage 3). Windows inherits the benefit of both without having to re-verify any of it itself.

This is also where Virtualization-Based Security (VBS) comes in, using the CPU's own virtualization extensions to carve out an isolated memory region that even the main operating system, running with full administrative rights, cannot directly access. This isolated region is what makes the next stage possible at all.

Stage 5: Credential Protection, Secrets That Even Admin Rights Can't Reach

Credential Guard runs inside that VBS-isolated region from Stage 4, protecting the authentication secrets that live in lsass.exe, cached password hashes and Kerberos tickets, from exactly the kind of memory-dumping attack tools like Mimikatz rely on. I've covered this specific attack technique and the ASR rule that also defends against it here.

Stage 6: BitLocker, Encrypting the Disk Against This Same Verified State

BitLocker's actual key hierarchy is covered in full elsewhere, but the short version fits directly into this chain: the key that decrypts the disk is sealed against the exact same TPM measurements from Stage 3. A device that boots normally, Secure Boot verified, TPM measurements matching, unlocks silently. A device whose boot state has changed, different hardware, tampered firmware, a moved disk, doesn't get the key without falling back to the 48-digit recovery password.

Stage 7: Identity, Where Hardware Trust Becomes Proof of You

The final link is Windows Hello for Business. I've covered the full climbing-ladder progression from passwords to this point elsewhere, but the piece that matters here specifically: a Windows Hello PIN or biometric scan doesn't get transmitted anywhere, and it isn't a password. It unlocks a cryptographic key pair generated and stored inside this same TPM, a key that's mathematically tied to this specific piece of trusted hardware and never leaves it.

What Breaks if You Skip a Link

This is also exactly why Windows 11's minimum hardware requirements insist on TPM 2.0: the entire chain above stage 3 has nothing to build on without it.

A New Laptop, Walked Through the Whole Chain

Every one of those five steps depended on the step before it. Autopilot's provisioning trust depends on the device having booted through a verified chain. BitLocker's silent, no-prompt encryption depends on a TPM being present and functional. Credential Guard depends on Secure Boot and virtualization extensions having been available from the very first stage. None of this is four separate features that happen to ship on the same laptop, it's one chain, and the security guarantee at the end is only as strong as its weakest link.

Summary

Which of these seven stages is still missing on your own fleet? TPM presence and Secure Boot status are worth actually auditing rather than assuming, especially on any hardware more than a few years old. Drop a comment with what you found.
