SCCM + Intune Application Deployment Reporting in Power BI

The 15-report catalog lists Application Deployment Status and Failed Application Installations as two separate entries. This post is the deep dive that connects them, because the real operational question was never "how many applications do we have." It's this one: are applications actually reaching the devices they're supposed to reach, and when they don't, is that a packaging problem or a detection problem? Those are different failures with different fixes, and most out-of-the-box reporting collapses them into the same "Failed" bucket.

Application
    ↓
Deployment
    ↓
Target Collection / Group
    ↓
Device
    ↓
Installation
    ↓
Detection
    ↓
Success / Failed / Pending
    ↓
Power BI

The Eight Stages

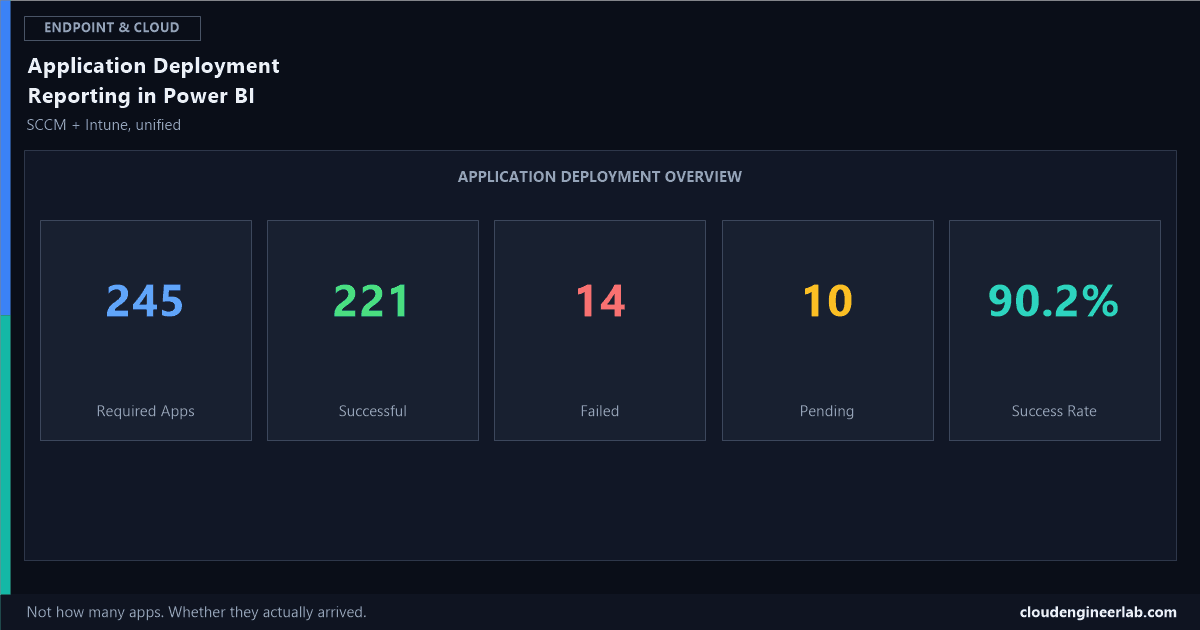

The Dashboard: Application Deployment Overview

A 90.2% success rate looks fine as a headline number and tells you almost nothing useful. The entire value of this report lives in what happens next, breaking that remaining 9.8% down into categories that actually point at a fix.

Investigate: Failed Deployments

The starting point, but not the destination. A raw "Failed" list without a reason code is a list someone still has to investigate manually, one device at a time. Pull the actual error or exit code alongside the failure, not just the count.

Investigate: Devices That Never Received the Application

This is the failure mode a simple status report can't see at all, because a device with no deployment record isn't in the "Failed" bucket, it's just silently absent. Finding it requires comparing two different populations: everyone in the target collection or group, against everyone who actually has a deployment status record.

Never Received =
COUNTROWS(
    EXCEPT(
        VALUES(TargetGroup[DeviceId]),
        VALUES(DeploymentStatus[DeviceId])
    )
)

A device that was added to the target group after the last content distribution cycle, or one sitting in a Configuration Manager collection that hasn't re-evaluated membership yet, shows up here, not in Failed. Treating this count as part of your failure rate, rather than a separate silent gap, is what actually closes it.

Investigate: Installation Succeeded but Detection Failed

The specific failure this whole report exists to surface. This requires keeping the install exit code and the detection result as two separate fields, not one collapsed status.

Detection-Only Failures =
CALCULATE(
    COUNTROWS(DeploymentStatus),
    DeploymentStatus[InstallExitCode] = 0,
    DeploymentStatus[DetectionResult] = "Not Detected"
)

Investigate: Deployment Trends

Is the failure rate for a specific application improving after a packaging fix, or steady, or getting worse as it rolls out to a wider ring. A single point-in-time success rate can't answer this, only a trend against DimDate can.

Investigate: Application Versions

A success rate that looks fine in aggregate can hide one specific version quietly failing everywhere it's deployed, while older, already-installed versions inflate the overall number. Break success rate down by version, not just by application name.

Investigate: SCCM vs Intune Deployment Status

The same dual-source pattern from the unified dashboard build applies directly here: an application deployed through both Configuration Manager and Intune during a co-management migration can show meaningfully different success rates on each path, and that difference is itself a signal, either about the packaging format's compatibility with one management channel, or about a migration that isn't as complete as it looks.

Investigate: Packaging Problems vs Detection-Rule Problems

Full DAX Reference

Required Apps = COUNTROWS(TargetGroup)

Successful = CALCULATE(COUNTROWS(DeploymentStatus), DeploymentStatus[Status] = "Success")

Failed = CALCULATE(COUNTROWS(DeploymentStatus), DeploymentStatus[Status] = "Failed")

Pending = CALCULATE(COUNTROWS(DeploymentStatus), DeploymentStatus[Status] = "Pending")

Success Rate = DIVIDE([Successful], [Required Apps])

Never Received =
COUNTROWS(EXCEPT(VALUES(TargetGroup[DeviceId]), VALUES(DeploymentStatus[DeviceId])))

Detection-Only Failures =
CALCULATE(
    COUNTROWS(DeploymentStatus),
    DeploymentStatus[InstallExitCode] = 0,
    DeploymentStatus[DetectionResult] = "Not Detected"
)

Summary

None of this replaces the packaging and detection-rule posts already published on this site, it operationalises them, turning "check this one device manually when someone complains" into "see the whole fleet's actual deployment health, broken down by the specific reason anything didn't work."

Have you separated install exit code from detection result in your own reporting, or are they still collapsed into one status field? That one modelling decision is the difference between this report being genuinely diagnostic and just being a fancier failure count. Drop a comment with how your model handles it.
